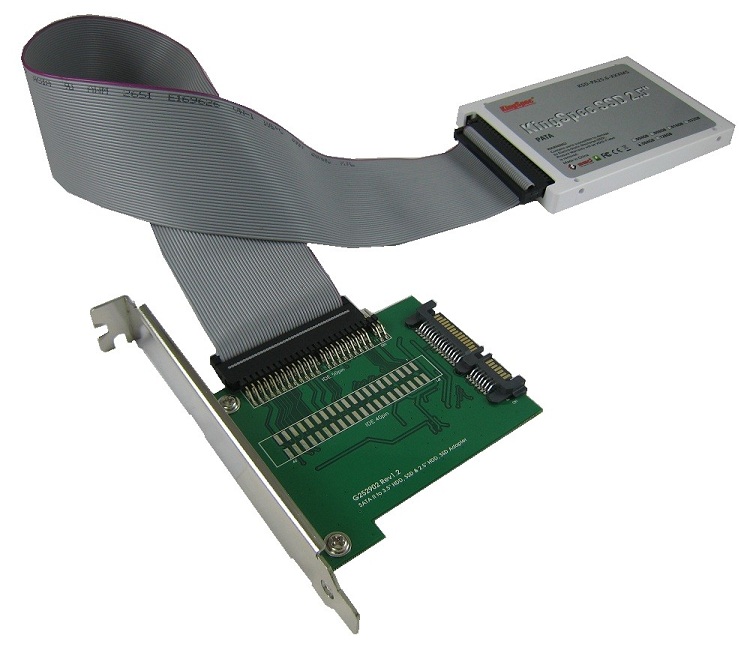

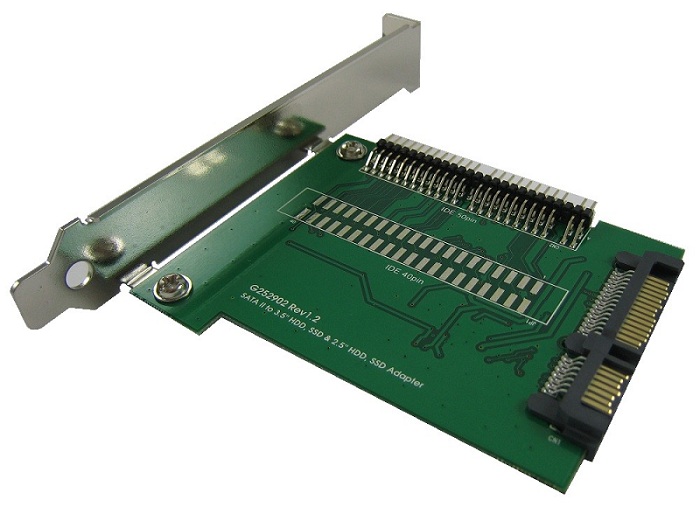

CB949MB/C is SATA to 2.5” IDE SSD,HDD adapter, providing a set of standard 7+15pin SATA connector on the host connection and a set of IDE 44pin 2.0mm pitch connector on the storage device connection. When assembled, it can operate in a variety of operating systems. Such as DOS, Windows 95, 98, XP, 2000, Vista, Win 7, Linux, Unix, and so on.
CB949MB/C adapter allows the installation of 2.5” IDE storage as system disk, boot the operating system directly, without having to install any drivers, but does not affect the execution speed of the storage devices.
1. ATAT8-APT Specification for Parallel 2.5" drive form factor
2. ATA/ATAPI Ultra DMA Mode 0, 1, 2, 3, 4, 5, 6, 7.
3. ATA/ATAPI PIO Mode 0, 1, 2, 3, 4.
The adapter connects to the Host PC in the same way that a 2.5 SFF SSD drive is connected using a SATA cable. It may be used in any application where a SFF SSD drive may be used:
1. desk-top PC
2. Internet Appliances
3. Kiosks
4. Industrial Computers
5. Routers
6. Firewalls
Test repoort Download :

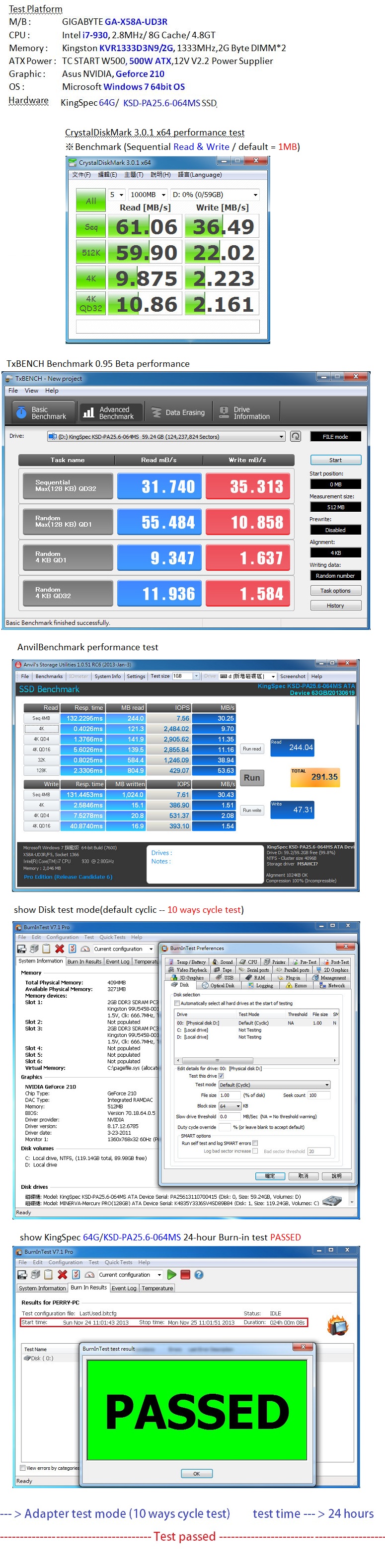

CB949MB performance and burn in test report
CB949MB + LITE-ON LGT-128M6G 測試報告 (繁體中文)
CB949MB + LITE-ON LGT-128M6G 测试报告 (简体中文)
Datasheet Download :
CB949MB Series.PDF CB949MB Series(繁體中文).PDF CB949MB Series(简体中文).PDF
